Maximum Power Transfer

Created at: 2025-11-21


Consequences

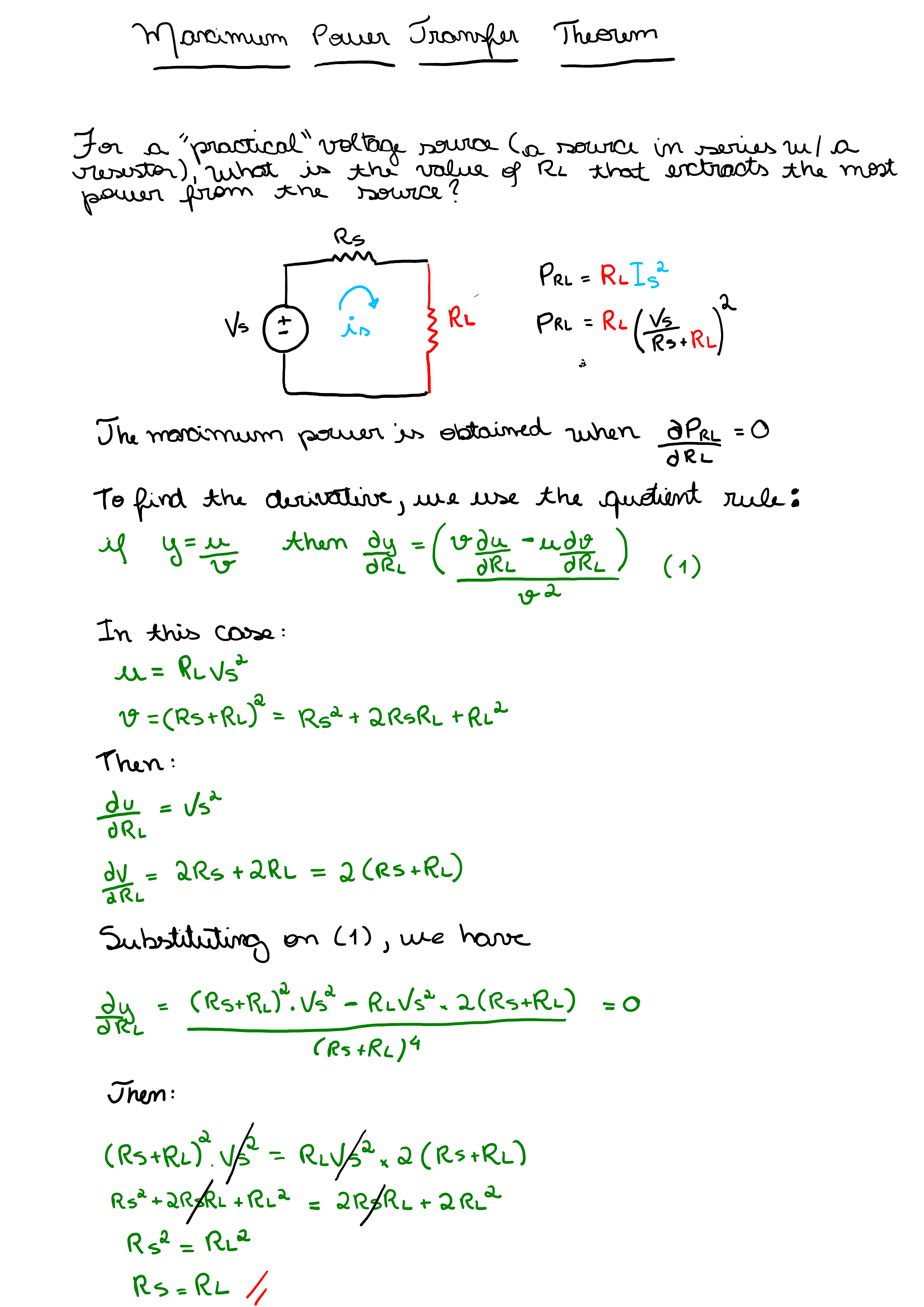

  1. A network delivers its maximum power to a load resistor Rl when Rl is equal to the thevenin resistance of the network

2. This theorem helps us specify a particular load to draw the maximum amount of power from the equivalent thevenin network.

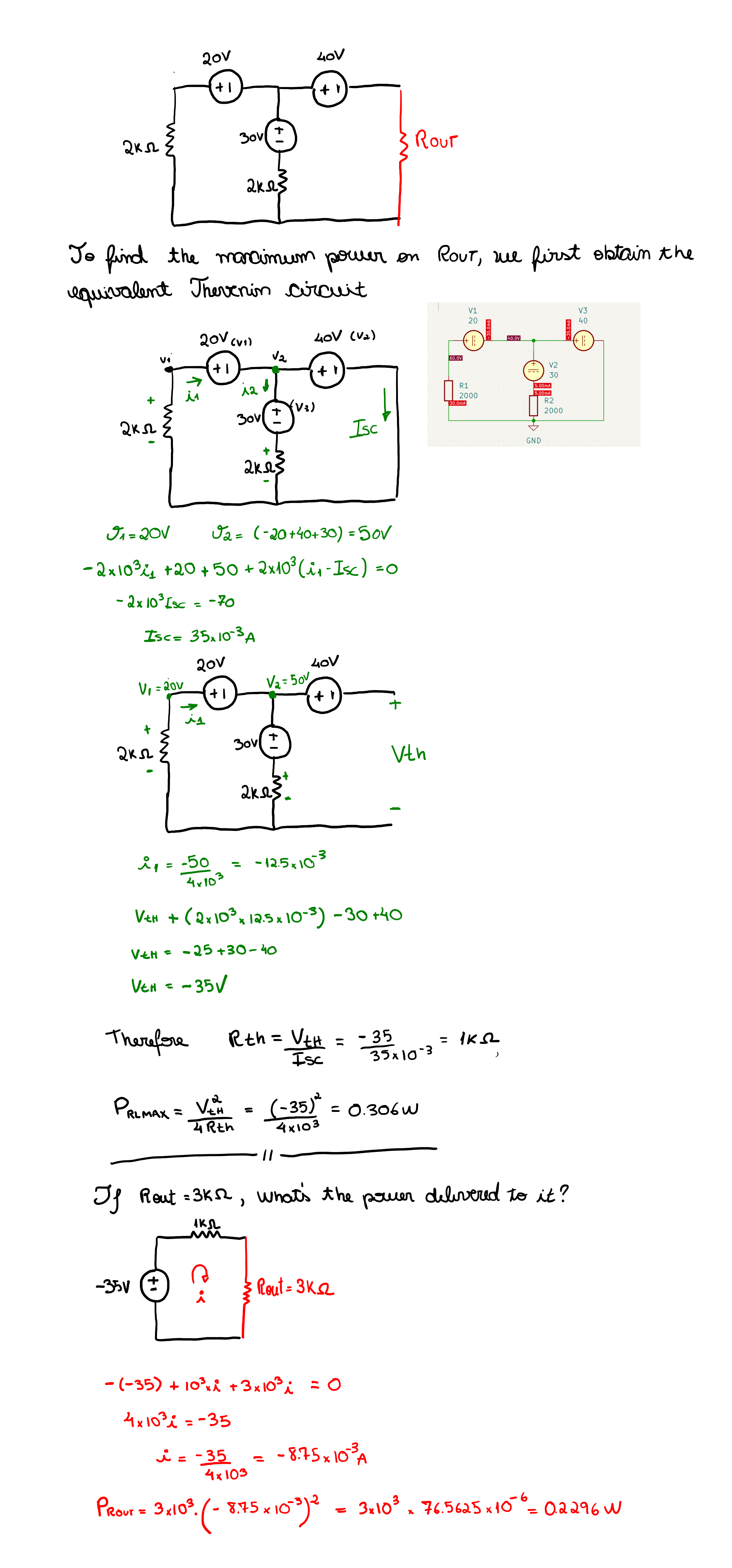

Examples
